DOL STARTER CONTROL FROM TWO DIFFERENTS PLACES

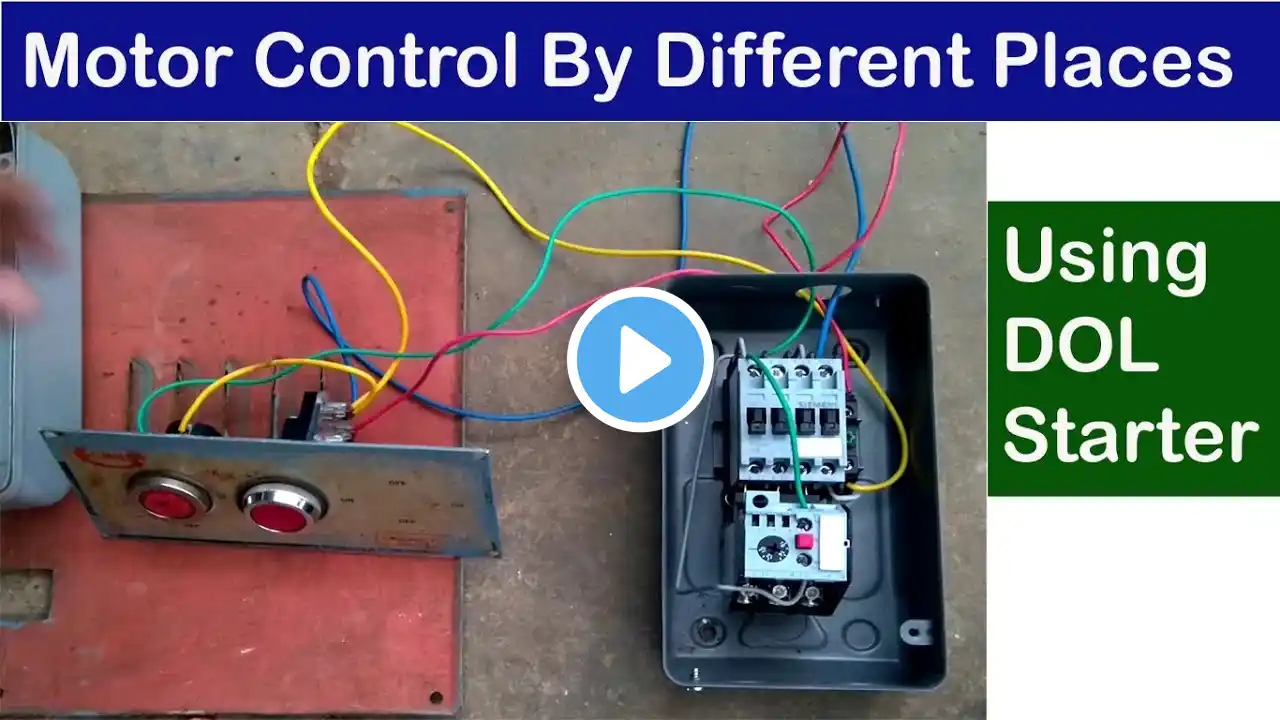

The direct-on-line starter control from TWO DIFFERENT PLACES has two control positions to start the motor (the case of a conveyor that we wish to control from two different places). Pressing one of the two start pushbuttons, closes the contactor (by energizing the contactor coil) connected to the main supply and motor. This provides the supply current to the motor. To turn the motor off, press one of the two "stop" pushbuttons. To protect it from over current, the control circuit is wired through a normally closed auxiliary contact of the overload relay. When the overload relay trips, the normally closed auxiliary contact opens, and de-energizes the contactor coil, and the contactor main contacts open. THANKS FOR WATCHING PLEASE LIKE, COMMENT AND SHARE; PLEASE SUBSCRIBE TO OUR CHANNEL    / @fonctionnement7414      • RING SOCKET WIRING DIAGRAM   (ring socket wiring diagram)    • GO DOWN WIRING DIAGRAM   ( go down wiring diagram)    • FLOAT SWITCH WIRING   DIAGRAM   (Float switch wiring diagram)    • STAIRCASE MASTER ON SWITCH WIRING DIAGRAM   (Staircase master on switch wiring )    • HOSTEL WIRING CONNECTION   (hostel wiring connection)    • 3 PHASE DB WIRING   ( 3 phase DB wiring)    • TWO WAY SWITCH CONNECTION   ( Two way switch connection)    • BOOSTER PUMP CONNECTION WITH ISOLATOR SWITCH   (booster pump connection with isolator switch)    • 3 GANG SWITCH WIRING   ( 3 gang switch wiring)    • AUTOMATIC AND MANUAL CONNECTION  SINGLE PH...   AUTOMATIC AND MANUAL CONNECTION SINGLE PHASE WATER PUMP WITH FLOAT SWITCH    • WINDOW AC WIRING USING DP SWITCH   WINDOW AC WIRING USING DP SWITCH    • MAIN DISTRIBUTION BOARD   Main Distribution    • DOUBLE GANG SWITCH WIRING   two gang switch wiring    • AUTOMATIC WATER LEVEL CONTROLER   AUTOMATIC WATER LEVEL CONTROLLER.    • TWO WAY STAIRCASE WIRING CONNECTION   TWO-WAY STAIR CASE WIRING    • SOLAR PANEL CONNECTION   SOLAR PANEL CONNECTION    • 3 PHASE DIRECT ONLINE STARTER   3 PHASE direct-on-line starter    • MOTION SENSOR WIRING   motion sensor    • SINGLE PHASE DB   single phase DB    • 3 PHASE DIRECT ONLINE STARTER WITH INDICATOR   3 PHASE direct-on-line starter with indicator    • 3 PHASE DIRECT ONLINE STARTER WITH INDICATOR   3 PHASE direct-on-line starter with indicator    • AUTOMATIC WATER HEATER WIRING CONNECTION   AUTOMATIC WATER HEATER WIRING    • BOUNDRY LIGHT WIRING   BOUNDARY LIGHT WIRING    • TWILIGHT SWITCH WIRING   TWILIGHT SWITCH WIRING    • REVERSE FORWART POWER CIRCUIT   REVERSE FORWART POWER CIRCUIT    • BOUNDRY LIGHT WIRING WITH MOTION SENSOR   BOUNDRY LIGHT WITH MOTION SENSOR    • STAIRE CASE LIGHT WITH MOTION SENSOR   STAIRE CASE LIGHT WITH MOTION SENSOR    • STREET LIGHT WIRING   STREET LIGHT WIRING    • TWO WAY BED SWITCH WIRING   TWO WAY BED SWITCH WIRING    • BOUNDARY LIGHT WIRING WITH TIMER   BOUNDARY LIGHT WIRING WITH TIMER    • DOOR BELL WIRING   BELLE WIRING    • ONE GANG TWO LIGHTS  WIRING   ONE GANG TWO LIGHTS WIRING    • SUBMERSIBLE MOTOR CONTROL BOX CONNECTION   SUBMERSIBLE MOTOR CONTROL BOX CONNECTION    • ELECTRIC COOKER WIRING   ELECTRIC Cooker wiring    • WATER HEATER AUTOMATIC AND MANUAL WIRING   WATER HEATER AUTOMATIC AND MANUAL WIRING    • STREET LIGHT AUTOMATIC AND MANUAL WIRING   Street lighting Automatic and manual wiring    • FORWARD REVERSE DOL STARTER WIRING   FORWARD REVERSE DOL STARTER WIRING    • FORWARD REVERSE DOL STARTER WITH INDICATORS   FORWARD REVERSE DOL STARTER WITH INDICATORS    • STAIR CASE LIGHT WIRING WITH TIMER   STAIR CASE WIRING WITH TIMER    • DOL STARTER WITH ONE WAY SWITCH   DOL STARTER WITH ONE WAY SWITCH
