How To Wire PIR Motion Sensor Light Switch

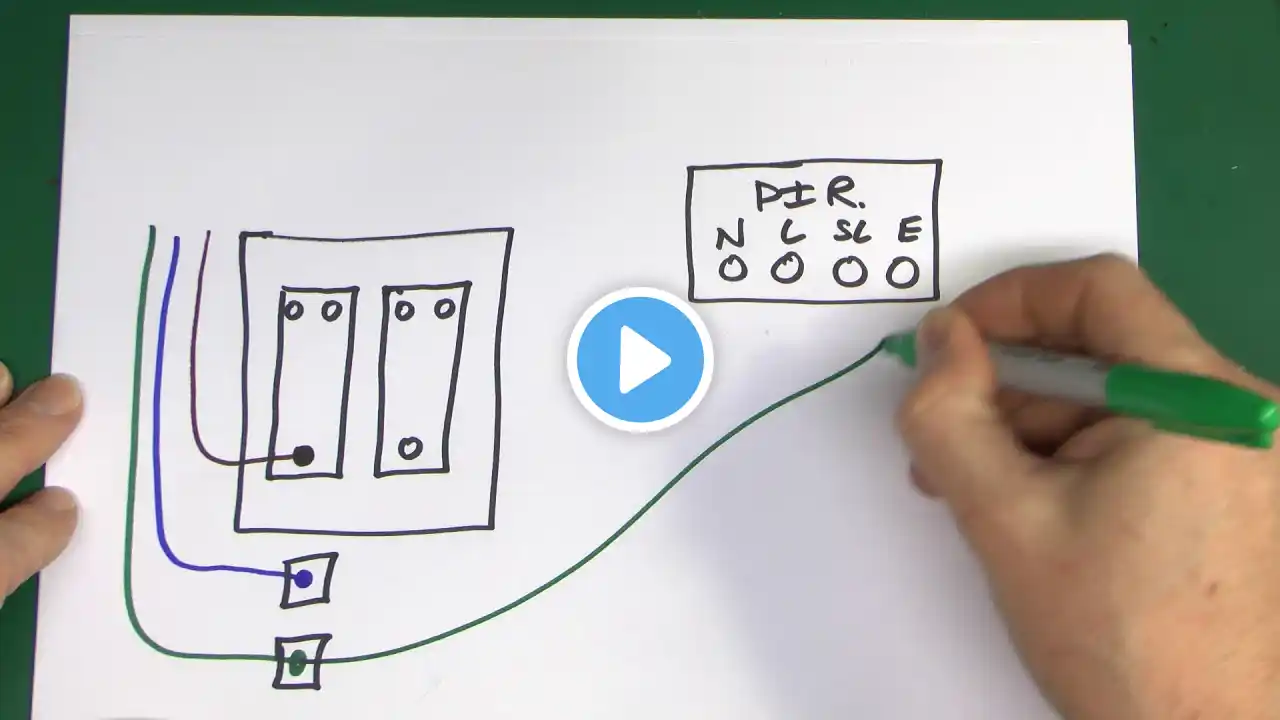

How To Wire PIR Motion Sensor Light Switch Correct Wiring probably saves an expensive PIR Sensor from an irrecoverable malfunction and annulment of any Warranty terms. This video is a step-by-step tutorial on how to wire the PIR Motion Sensor. Wiring Connections: =============== Brown Colour L' = Relay Output from the Sensor to the Load. Blue Colour N = Neutral. Black Colour L = Live Phase into the Sensor. ++++++++++++++++++++++++++++++++++++++++++++++++++++++ Salient Features ============= The Infrared motion sensor IS 140-2 for indoors and out ideal for targeted detection close to the building 140° angle of coverage reach up to 14 m selectable time and twilight threshold sensor turns through 180° and tilts through 90° for exact adjustment of the detection zone. ++++++++++++++++++++++++++++++++++++++++++++++++++++++ Technical Specifications ================== EAN European Article Number :4007841608811 w x h x d - Dimensions : 70 x 86 x 95 mm Model : Motion Sensor Voltage :230-240 V/50 Hz Sensor type: Passive infrared Application: Indoors and Outdoors Installation: Wall Capability of masking out individual segments :Yes Swivelling range : 180 ° Reach: Temperature-stabilised 14 m max. Tilting range: 90 ° Response value luminosity : 2-2000 lx Teach-function for response value luminosity :No Time setting: 8 sec. - 35 min. ++++++++++++++++++++++++++++++++++++++++++++++++++++++ For more information about product please visit : http://www.steinel.de/en/Sensors/Moti... http://pammvi.com/division/9 Contact US Email : [email protected] Tel : +91-22-26731904 ++++++++++++++++++++++++++++++++++++++++++++++++++++++ On Social Media: Facebook :   / pir.motion.sensors   Twitter :   / pammvi   Google Plus : https://plus.google.com/u/0/100301587... ++++++++++++++++++++++++++++++++++++++++++++++++++++++
