741 op amp non inverting comparator demonstration circuit step by step build and explanation

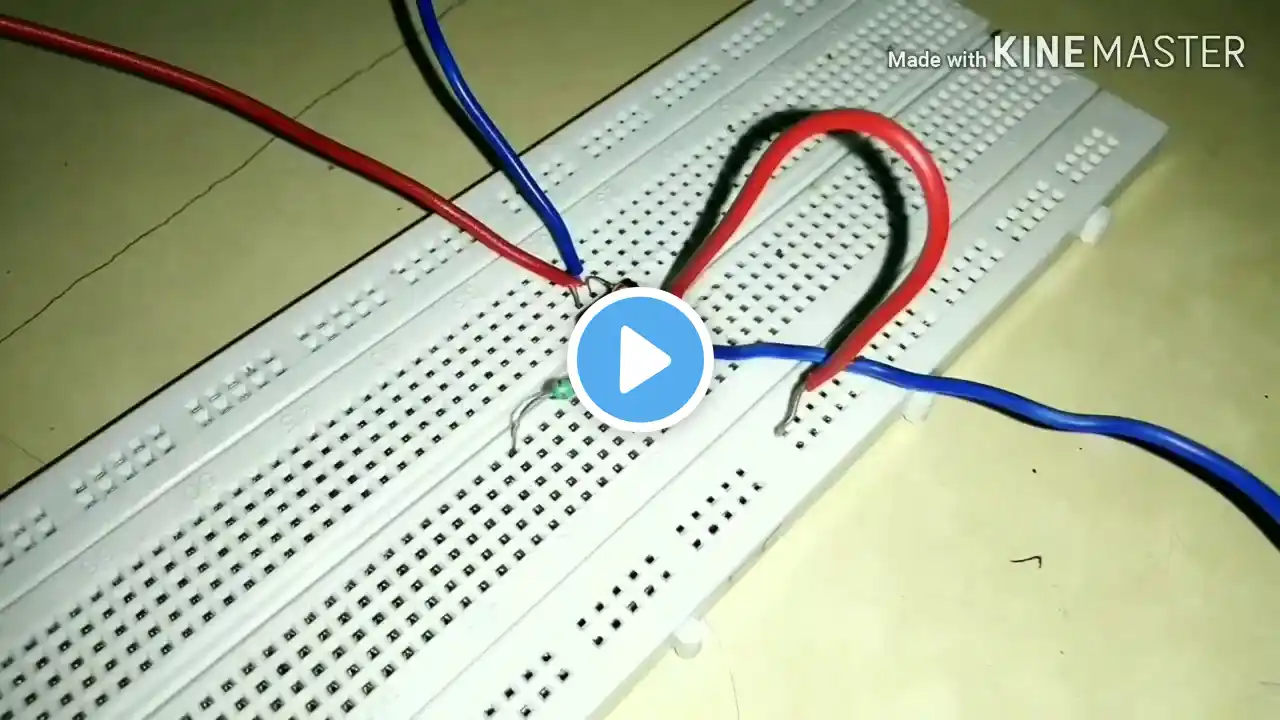

   / electronzap     / electronzap     / electronicsstudy     / electronzap   https://www.amazon.com/shop/electronz... As an Amazon Associate I earn from qualifying purchases. Americans should check out that link! No extra cost to you! Demonstration circuit for showing one way to wire a 741 op amp to take an analog input voltage to output a saturated digital signal of the same polarity (non inverting). I use a voltage divider to create a dual polarity variable voltage and a polarity indicator circuit connected to the op amp output to show changing polarity at the output, controlled by the non inverting input.
