5G NR Frame Structure

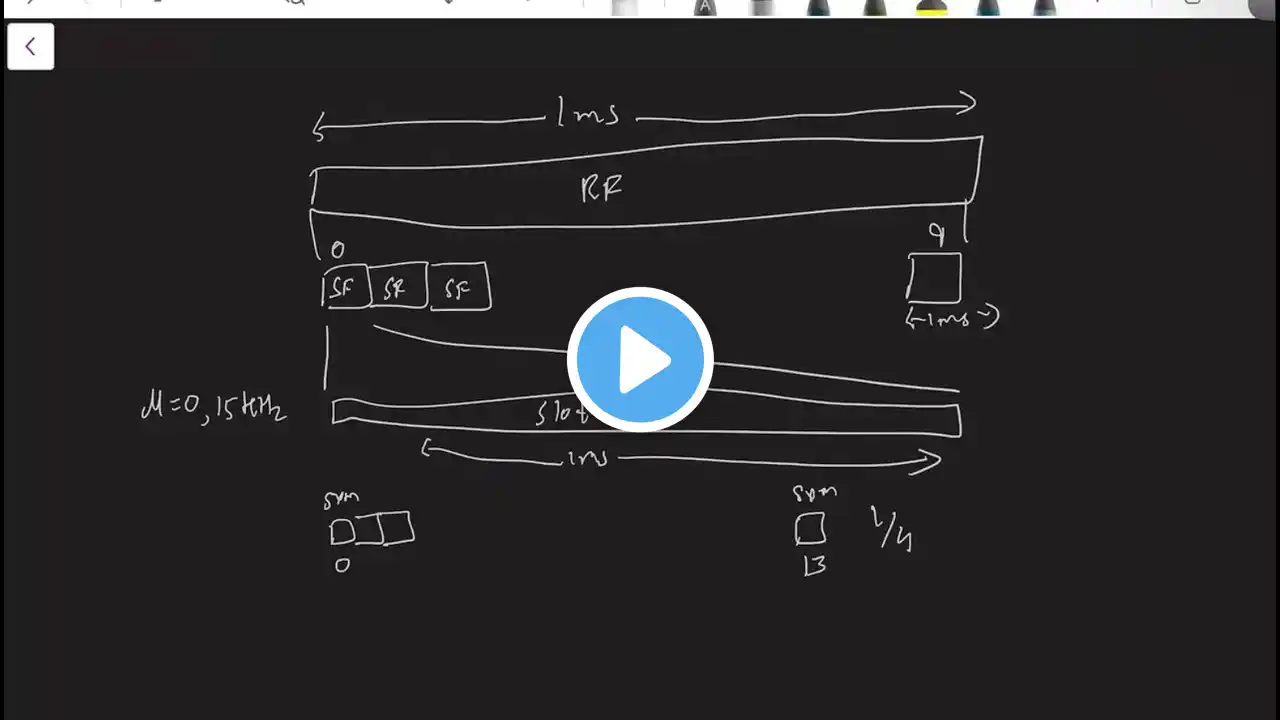

How 5G's Flexible "Numerology" Unlocks Its True Potential. We've discussed the what (spectrum). Now, let's talk about the how—how 5G dynamically structures data in time and frequency to deliver on its promises. In 5G New Radio (NR), the air interface is built for unprecedented flexibility. Unlike 4G's rigid frame, 5G introduces flexible numerology, a game-changer for supporting everything from massive IoT to ultra-reliable low-latency communications (URLLC). 🧱 The Building Blocks: Frame Structure First, the basics remain familiar for a smooth transition: • A Radio Frame is 10 ms long. • It contains 10 subframes of 1 ms each. • Slots and OFDM symbols make up the smallest units for data transmission. 🚀 The Game Changer: Flexible Numerology (μ) This is where 5G truly diverges. Numerology (μ) defines the subcarrier spacing and slot duration. By scaling these, 5G adapts to wildly different use cases. 👉 Lower Numerology (μ = 0) Subcarrier Spacing: 15 kHz Use Case: Foundational eMBB, LTE compatibility 👉 Mid-Range Numerology (μ = 1, 2) Subcarrier Spacing: 30 - 60 kHz Use Case: Balanced performance, URLLC for industrial IoT 👉 Higher Numerology (μ = 3, 4) Subcarrier Spacing: 120 - 240 kHz Use Case: mmWave bands, ultra-low latency, extreme high-speed 💡 Why does this matter? This flexibility is the foundation for: • Low Latency: Shorter slots mean faster data transmission, critical for autonomous vehicles. • High Speed: Wider subcarrier spacing enables blazing-fast data rates in mmWave. • Efficiency: The network dynamically assigns the right "time slice" for each service. This deep technical understanding is what separates good network design from great, future-proof architecture. Want to master these fundamental concepts and more? Dive deeper into the engineering principles that power 5G in our comprehensive new course. We cover everything from the physical layer to advanced network slicing. Transform your technical knowledge. 👉https://www.itelcotech.com/learningpa... #5G #5GNR #Telecom #NetworkEngineering #WirelessTechnology #TechCourse #CareerGrowth #URLLC #eMBB #IoT #mmWave
