FIX Honda Generator LOW VOLTAGE! (AC Volt Testing & Troubleshooting Guide)

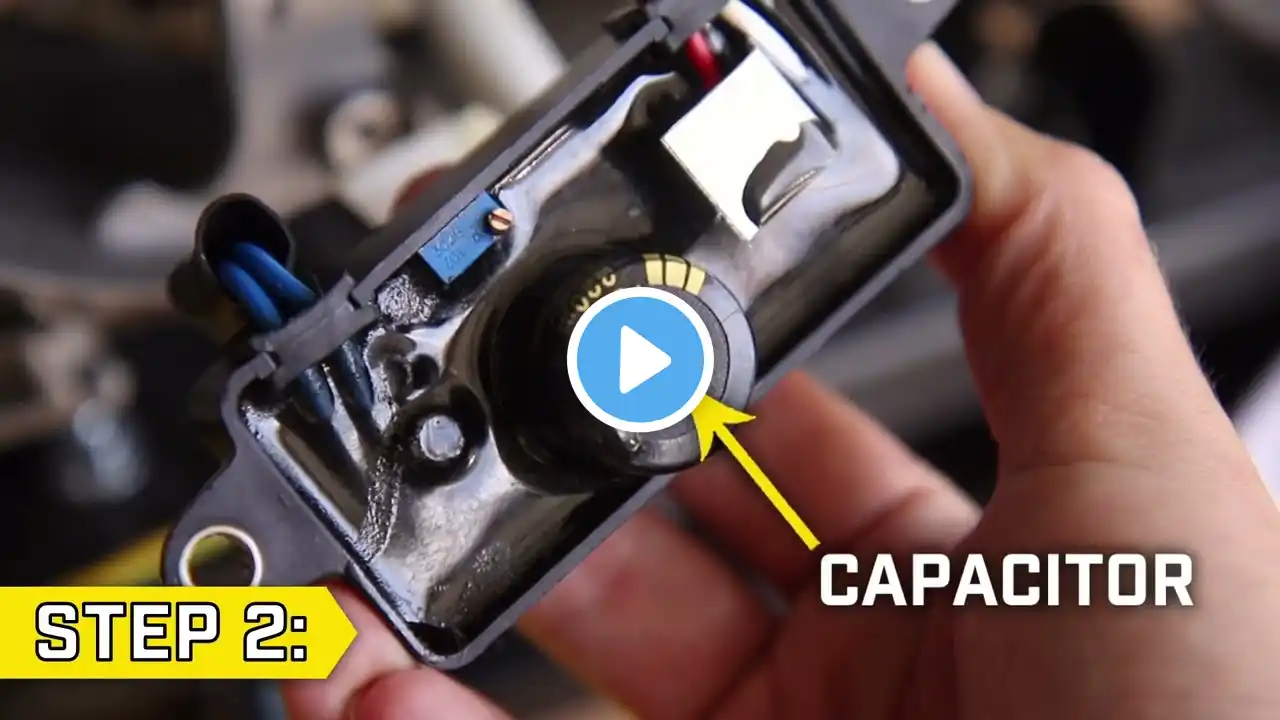

⚠️ SAFETY WARNING: This video involves running the generator and testing live AC voltage. ALWAYS use a high-quality multimeter and insulate your hands and tools. Do not attempt if you are unfamiliar with live electrical testing. If your Honda brushless generator is running smoothly but producing 10V, 60V, or anything less than the expected 120V/240V, you have a low voltage issue. This guide will walk you through the essential voltage tests using a multimeter to find the source of the problem, which is almost always the engine speed or the excitation capacitor. 🔍 The 3-Step Honda Low Voltage Troubleshooting Guide All tests are performed with the generator running at full operating speed (3600 RPM for 60Hz units) and the multimeter set to AC Volts. Step Measurement Point Target Voltage (AC) Diagnosis if LOW 1. Main Output Across the main outlet terminals. 120V or 240V Move to Step 2. If 0V, re-check circuit breaker. 2. Engine Speed (RPM) Use a laser tachometer or verify the engine governor setting. 3600 RPM (for 60Hz) Low RPM causes low voltage. Adjust governor linkage. 3. Excitation Circuit Directly across the terminals of the Generator Capacitor. 4V to 8V AC LOW/ZERO: Capacitor is bad (most likely cause). GOOD: Trouble is likely a damaged Stator Winding or Rotor (less common). Learn more about generator repair with my Amazon book https://amzn.to/43ktqzc Best place to buy parts for Generators here https://ebay.us/hzJ569 As an Amazon Associate and eBay Partner, I earn from qualifying purchases. The Capacitor Fix: Testing the μF and replacing a faulty capacitor. The Engine Fix: Identifying and adjusting low engine RPM (often caused by a sticky governor or a clogged carburetor jet). The "Flashing the Field" Trick: The temporary use of a battery (on some models) to restore residual magnetism and initial output. #HondaGenerator #LowVoltage #GeneratorRepair #ACVoltTest #BrushlessGenerator #CapacitorTest #Troubleshooting #DIYGeneratorFix
