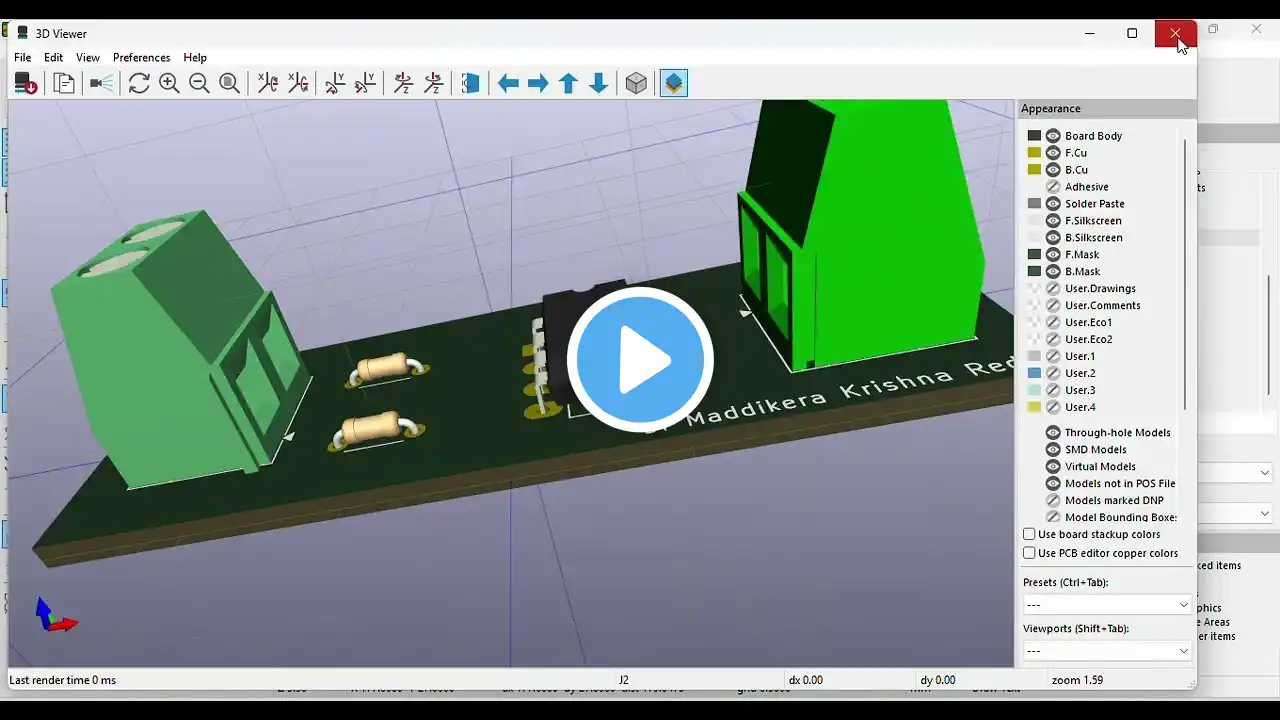

An operational amplifier is a three-terminal device consisting of two high impedance input terminals, one is called the inverting input denoted by a negative sign and the other is the non-inverting input denoted with a positive sign. The third terminal is the output of the Op-Amp. Inverting Operational Amplifier In the inverting operational amplifier circuit, the signal is applied at the inverting input and the non-inverting input is connected to the ground. In this type of amplifier, the output is 180⁰ out of phase to the input, i.e. when positive signal is applied to circuit, the output of the circuit will be negative. By assuming the Op-Amp is ideal, then the concept of virtual short can be applied at the input terminals of the Op-Amp. So that voltage at the inverting terminal is equal to the voltage at non-inverting terminal Non-Inverting Operational Amplifier When the signal is applied at the non-inverting input, the resulting circuit is known as Non-Inverting Op-Amp. In this amplifier the output is exactly in phase with the input i.e. when a positive voltage is applied to the circuit, the output will also be positive. By assuming the Op-Amp is ideal, then concept of virtual short can be applied i.e. the voltage at the inverting and non-inverting terminal is equal. . . . Like Share Subscribe If you have any enquiry regarding this product, then e-mail us at: [email protected] You can also buy this product on: www.scientifickart.com Company website: www.omlabs.in Also subscribe to our channel OM Labs Biology for related to biology.    / @omlabsbiology
